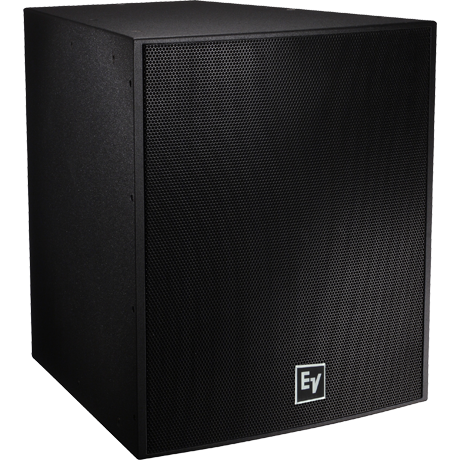

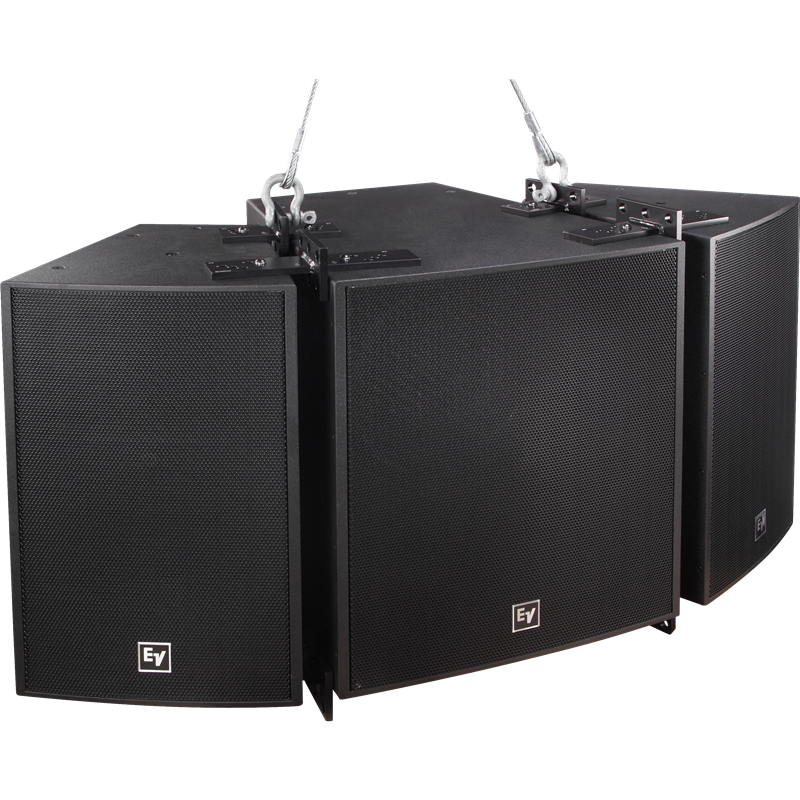

EVF-1181S單18"超低音音箱系統設計用作EVF系列產品的超低頻率增強單元。EVF-1181S的尺寸與全頻EVF型號完全一樣,其配套吊裝點可以進行
覆蓋(-6dB標準) | Omnidirectional in normal operating range |
環境參數 | Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55 |
輸入連接 | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover |
額定阻抗 | Passive: N/A, Bi-amp: 8 Ω Biamp |
頻率響應(-3分貝) | 35 - 100Hz |
頻率響應(-10分貝) | 28 - 650Hz |
建議高通頻率 | 33Hz |
靈敏度(1瓦/1米) | 99dB |
最大. 聲壓級/1米 (計算) | 131dB |
系統功率處理(連續/音樂//峰值) | 400, 800, 1600 Watts |
低頻換能器 | EVS18SB, 18 in (457mm) Driver |
最小負荷阻抗 | Passive: N/A, Bi-amp: 6 Ω Biamp |
箱體材料 | 13 Ply Weather Resistant Birch |
柵格 | Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind |
吊掛 | (28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) |
高度 | 768.6mm (30.26") |
寬度 | 675.6mm (26.6") |
深度 | 726.4mm (28.6") |
凈重 | 45.9kg (101.19lbs) |
