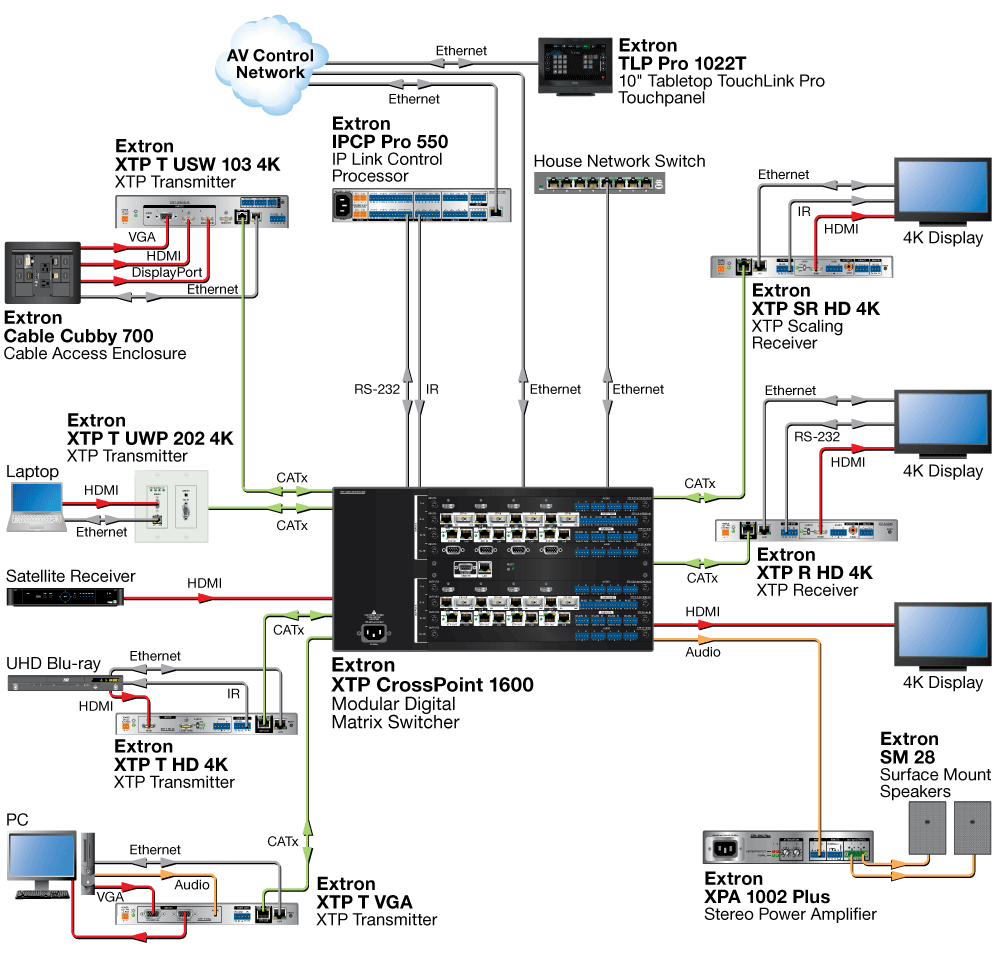

AV routing capabilities |

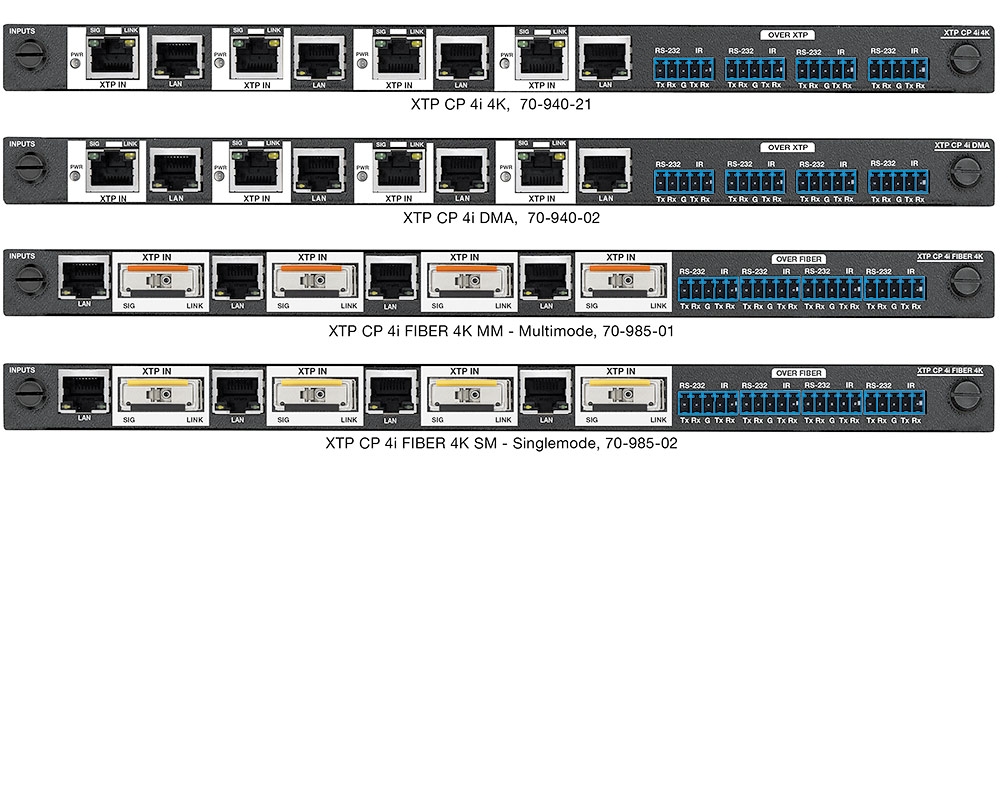

Number of input slots | 4 |
Input video signal format | HDMI, DVI, 3G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber |
Input audio signal format | PCM up to 8 ch, Dolby Atmos?, Dolby? TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio?, DTS-HD High Res, DTS 96/24, DTS-ES?, DTS, analog stereo |

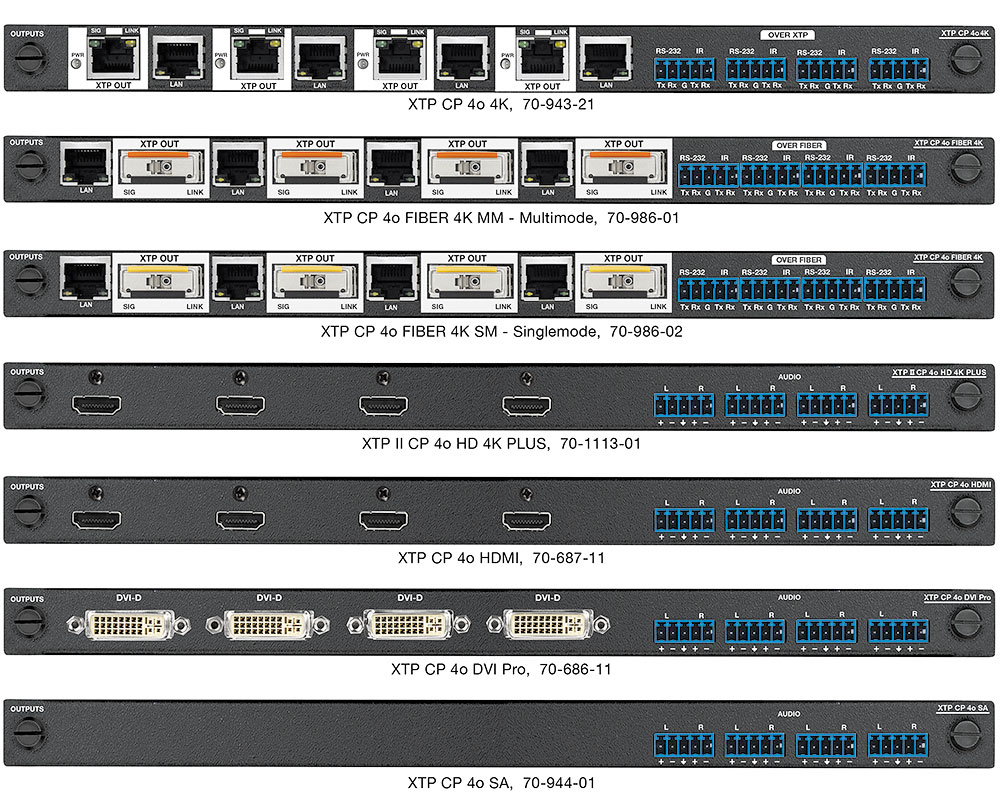

Number of output slots | 4 |
Output video signal format | HDMI, DVI, XTP twisted pair, XTP fiber |
Output audio signal format | PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo |
Backplane |
|
Switcher | 16x16 matrix |
Maximum throughput | 15.2 Gbps |
|
Communications — switcher host ports |
| NOTE The front panel USB port and rear panel RS-232 port are independent of each other and can be used at the same time. |
Serial host control port | 1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector |
Baud rate and protocol | 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control |
Serial control pin configurations |
|
RS-232 | 2 = Tx, 3 = Rx, 5 = GND |
RS-422 | 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+ |
USB control port | 1 front panel female mini USB B |
USB standards | USB 2.0, low speed |
Ethernet control port | 1 female RJ-45 |
Ethernet data rate (for network communication) | 10/100Base-T, half/full duplex with autodetect |
Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet |
Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off |
Web server | Up to 200 simultaneous sessions
7.0 MB nonvolatile user memory |
Program control | Extron XTP System Configuration Software for Windows?
Extron Simple Instruction Set (SIS?)
Microsoft? Internet Explorer? ver. 6 or higher, Telnet |
|
General |
Power | Internal
Input: 100-240 VAC, 50-60 Hz
Redundant power supply is optional. |
Power consumption | 29.6 to 637 watts, depending on the configuration |
With primary power supply only |
|
115 VAC, 60 Hz | 30.6 watts |
240 VAC, 50 Hz | 29.6 watts |
With both primary and redundant power supplies |
|
115 VAC, 60 Hz | 44.0 watts |
240 VAC, 50 Hz | 39.5 watts |
Remote power capability | Supports up to 28 XTP twisted pair endpoints |
Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
Cooling | Fan, right to left (as viewed from front panel) |
Thermal dissipation | 101 to 2174 BTU/hr, depending ont he configuration |
Mounting |
|
Rack mount | Yes |
Enclosure type | Metal |
Enclosure dimensions | 8.75" H x 17.0" W x 17.5" D (5U high, full rack wide)
(22.2 cm H x 43.2 cm W x 44.5 cm D)
(Depth excludes connectors. Width excludes rack ears.) |
Product weight with boards installed | 39.0 lbs (17.7 kg) |
Vibration | ISTA 1A in carton (International Safe Transit Association) |
Regulatory compliance |
|
Safety | CE, c-UL, UL |
EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI, KCC |
Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
Product warranty | 3 years parts and labor |
Everlast power supply warranty | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. |
| NOTE Specifications are subject to change without notice. |
|
