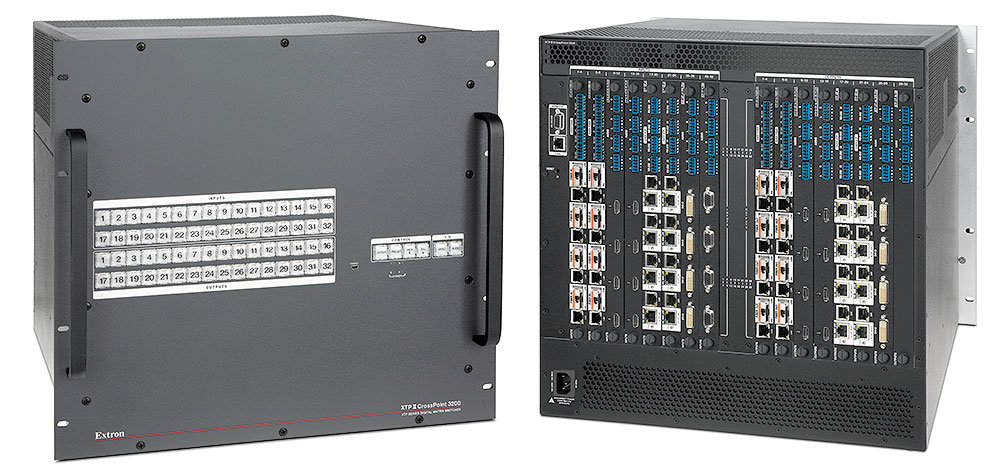

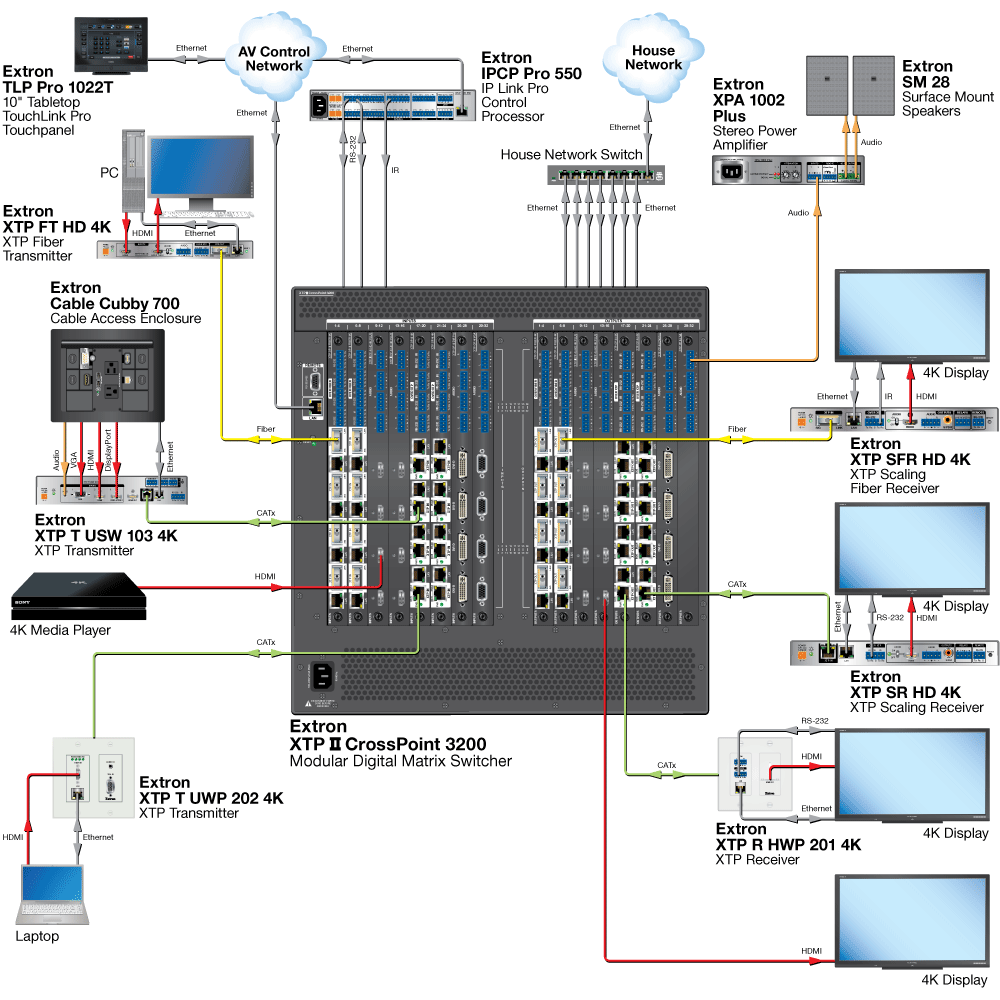

XTP II CrossPoint? 3200 Enclosure |
|
specification |
|
Frame rate | 24, 25, 30, 50, or 60 fps |
Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
Color bit depth | 8, 10, 12, or 16 bits per color |
Backplane throughput | 50 Gbps per input and output |
| NOTE Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate. |
|
|
|
AV routing capabilities |

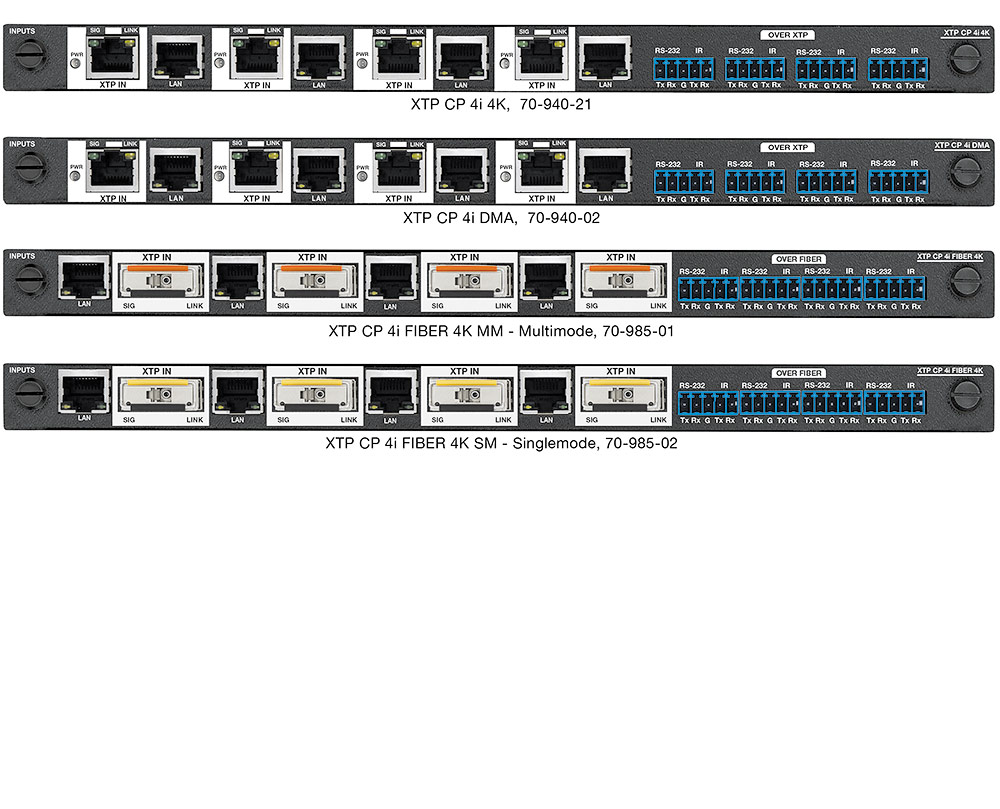

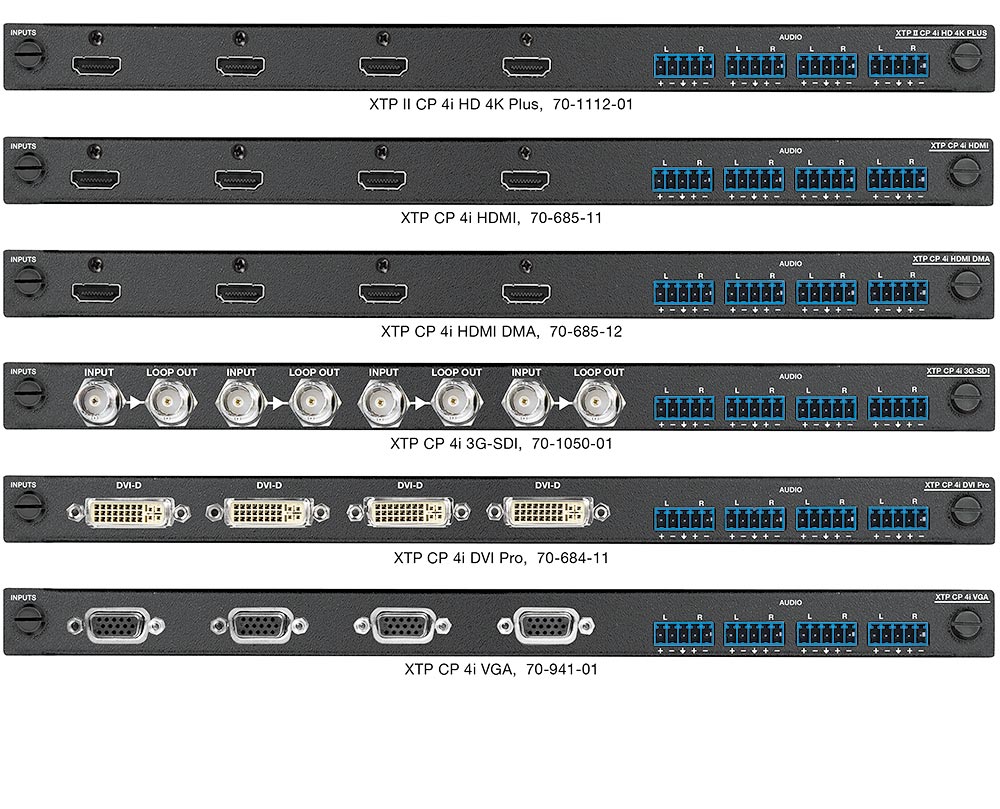

Number of input slots | 8 |
Input video signal format | HDMI, DVI, 3G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber |
Input audio signal format | PCM up to 8 ch, Dolby Atmos?, Dolby? TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio?, DTS-HD High Res, DTS 96/24, DTS-ES?, DTS, analog stereo |

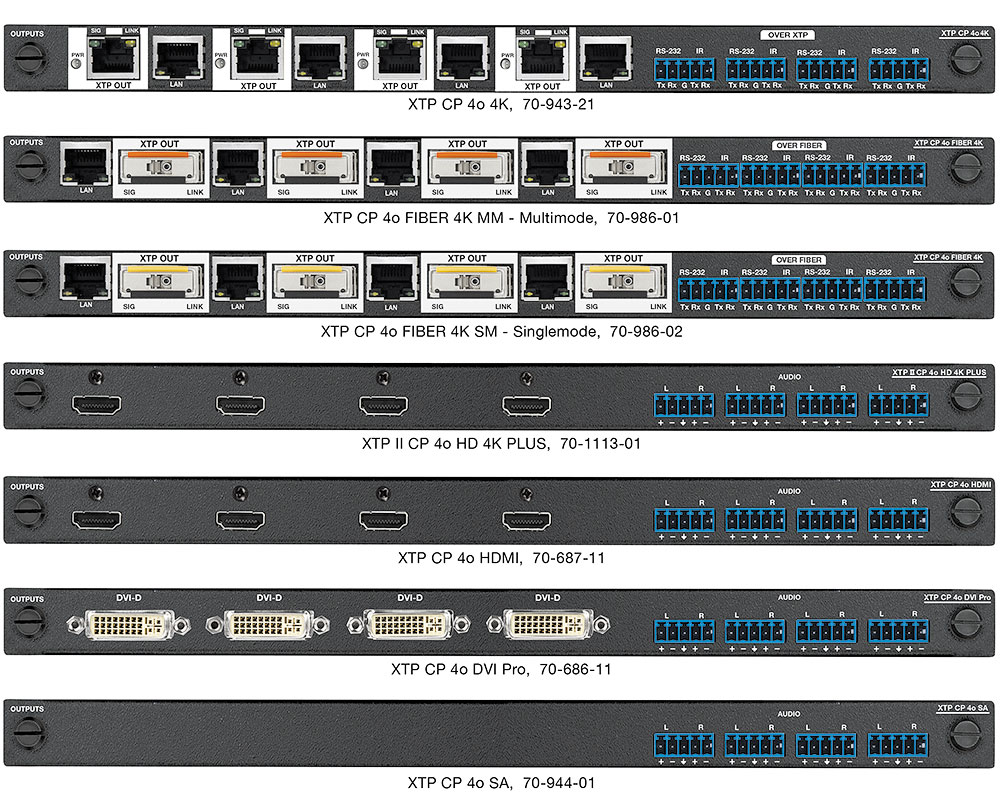

Number of output slots | 8 |
Output video signal format | HDMI, DVI, XTP twisted pair, XTP fiber |
Output audio signal format | PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo |
Backplane |
|
Switcher | 32x32 matrix |
Maximum throughput | 50 Gbps |
|
Communications — switcher host ports |
| NOTE The front panel USB port and rear panel RS-232 port are independent of each other and can be used at the same time. |
Serial host control port | 1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector |
Baud rate and protocol | 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control |
Serial control pin configurations |
|
RS-232 | 2 = Tx, 3 = Rx, 5 = GND |
RS-422 | 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+ |
USB control port | 1 front panel female mini USB B |
USB standards | USB 2.0, low speed |
Ethernet control port | 1 female RJ-45 |
Ethernet data rate (for network communication) | 10/100Base-T, half/full duplex with autodetect |
Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet |
Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off |
Web server | Up to 200 simultaneous sessions
7.0 MB nonvolatile user memory |
Program control | Extron XTP System Configuration Software for Windows?
Extron Simple Instruction Set (SIS?)
Microsoft? Internet Explorer? ver. 6 or higher, Telnet |
|
General |
Power | Internal
Input: 100-240 VAC, 50-60 Hz
Redundant power supply is standard. |
Power consumption | 102 to 800 watts, depending on the configuration |
115 VAC, 60 Hz | 116 watts (no load)
170 watts (4 load boards installed) |
240 VAC, 50 Hz | 102 watts (no load)
167 watts (4 load boards installed) |
Remote power capability | Supports up to 24 XTP twisted pair endpoints |
Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
Cooling | Fan, right to left (as viewed from front panel) |
Thermal dissipation | 348 to 2730 BTU/hr, depending on the configuration |
Mounting |
|
Rack mount | Yes |
Enclosure type | Metal |
Enclosure dimensions | 17.5" H x 17.0" W x 17.5" D (10U high, full rack wide)
(44.5 cm H x 43.2 cm W x 44.5 cm D)
(Depth excludes connectors. Width excludes rack ears.) |
Product weight with boards installed | 64.0 lbs (29.0 kg) |
Vibration | ISTA 1A in carton (International Safe Transit Association) |
Regulatory compliance |
|
Safety | CE, c-UL, UL |
EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI, KCC |
Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
Product warranty | 3 years parts and labor |
Everlast power supply warranty | 7 years parts and labor |
