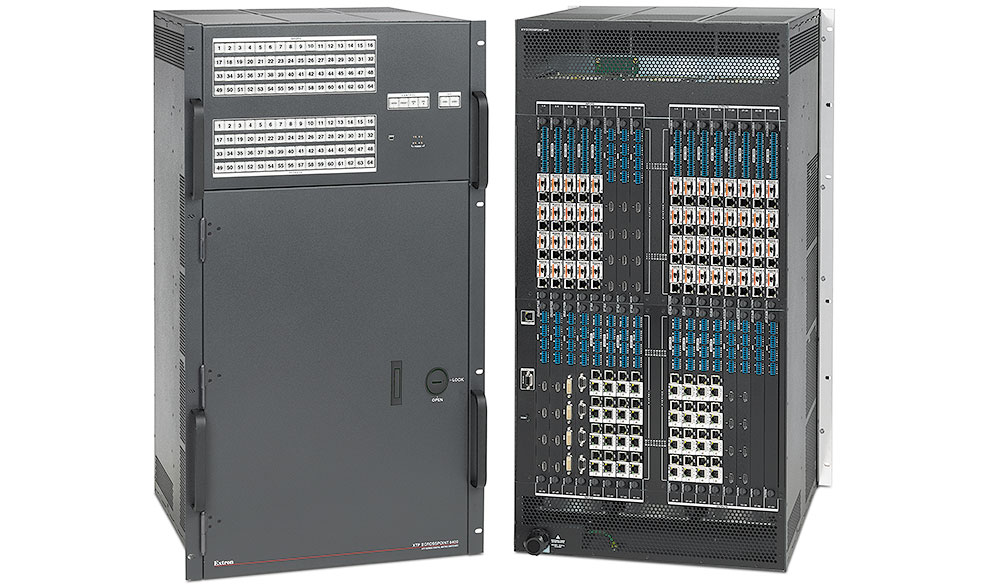

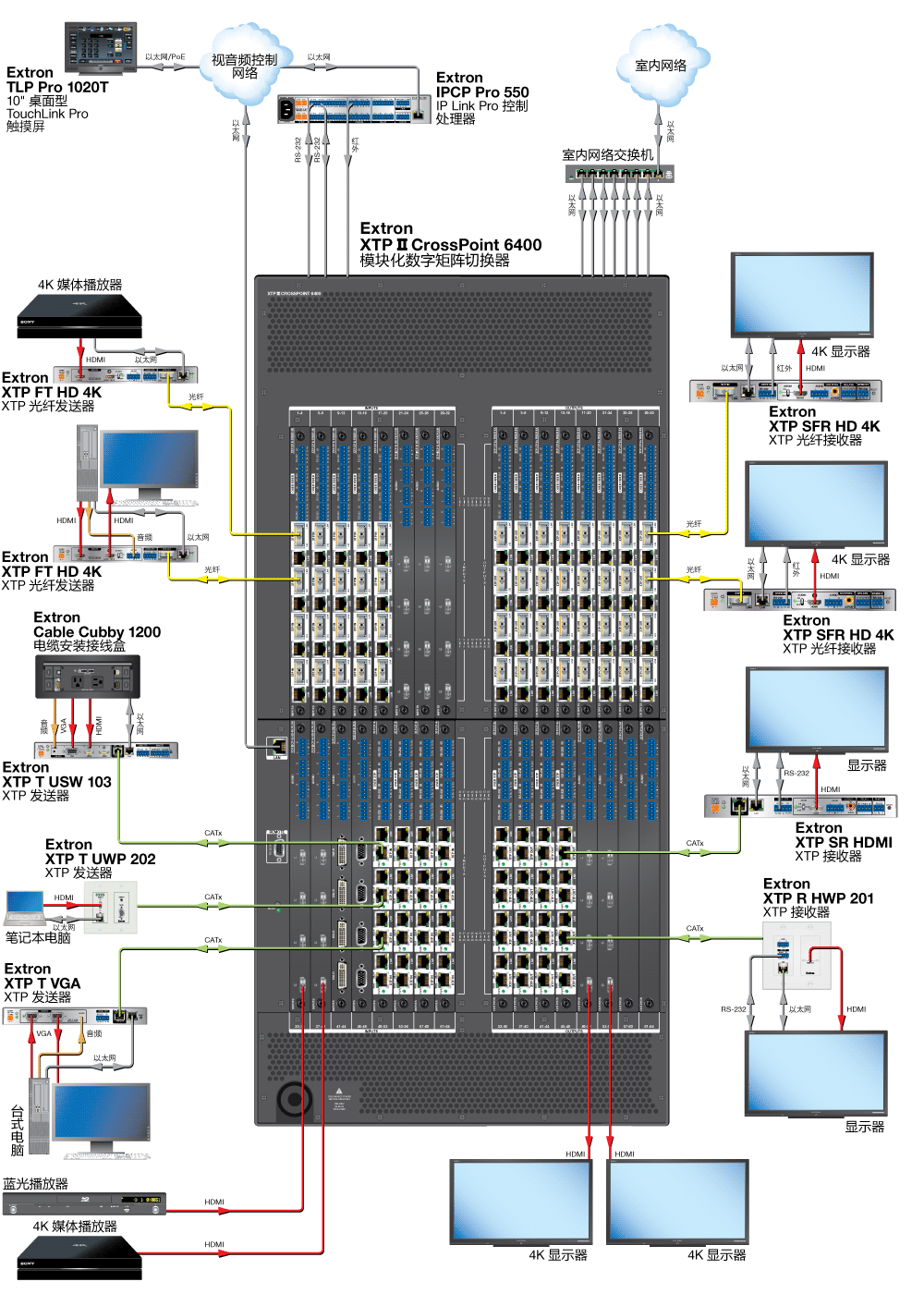

| AV routing capabilities |
|---|
| Number of input slots | 16 |

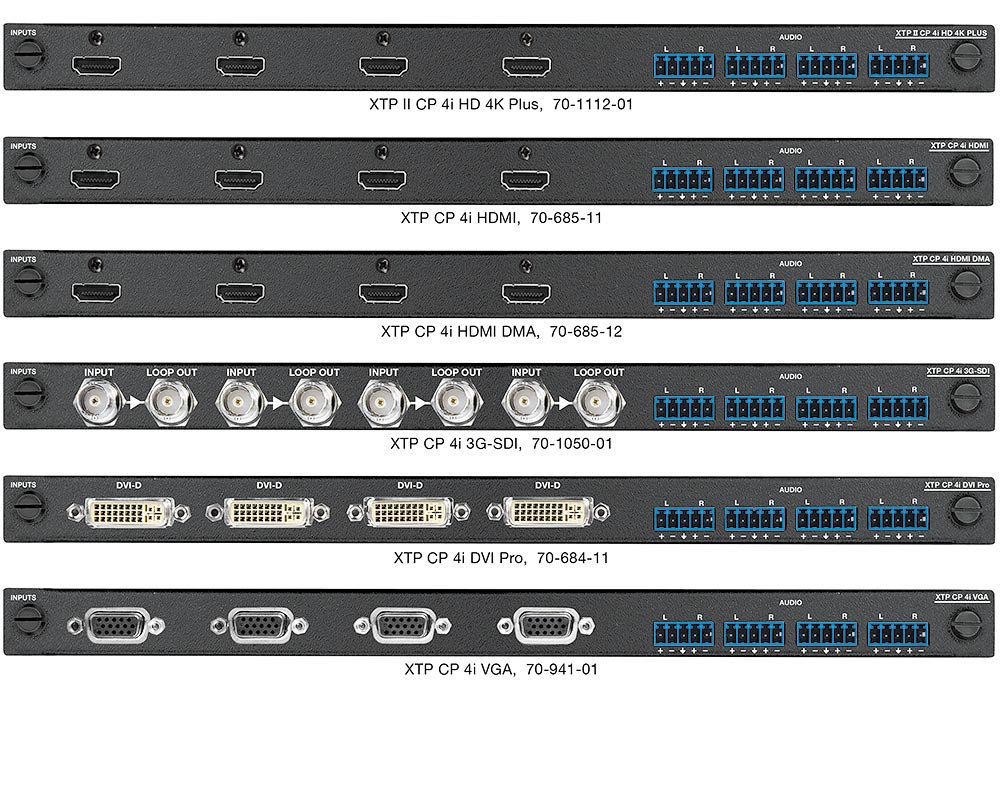

| Input video signal format | HDMI, DVI, 3G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber |
| Input audio signal format | PCM up to 8 ch, Dolby Atmos?, Dolby? TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio?, DTS-HD High Res, DTS 96/24, DTS-ES?, DTS, analog stereo |
| Number of output slots | 16 |

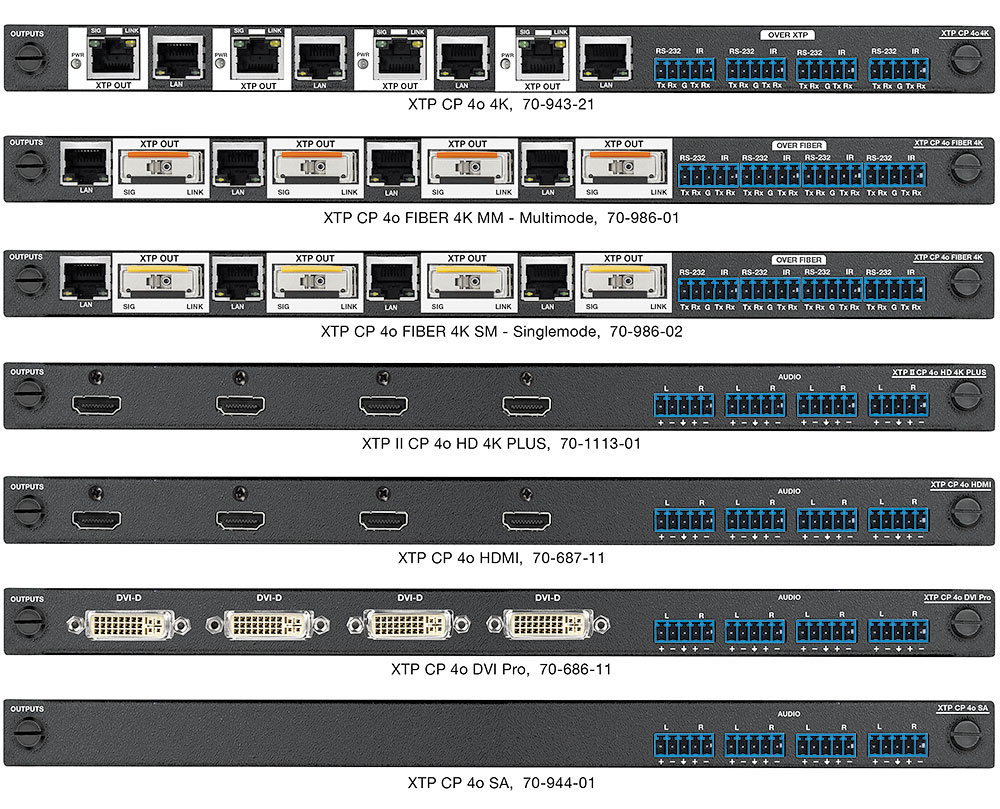

| Output video signal format | HDMI, DVI, XTP twisted pair, XTP fiber |
| Output audio signal format | PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo |
| Backplane |
|
| Switcher | 64x64 matrix |
| Maximum throughput | 50 Gbps |
|
| Communications — switcher host ports |
|---|
| NOTE The front panel USB port and rear panel RS-232 port are independent of each other and can be used at the same time. |
| Serial host control port | 1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector |
| Baud rate and protocol | 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control |
| Serial control pin configurations |
|
| RS-232 | 2 = Tx, 3 = Rx, 5 = GND |
| RS-422 | 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+ |
| USB control port | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Ethernet control port | 1 female RJ-45 |
| Ethernet data rate (for network communication) | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet |
| Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off |
| Web server | Up to 200 simultaneous sessions
7.0 MB nonvolatile user memory |
| Program control | Extron XTP System Configuration Software for Windows?
Extron Simple Instruction Set (SIS?)
Microsoft? Internet Explorer? ver. 6 or higher, Telnet |
|
| General |
|---|
| Power | Internal
Input: 200-240 VAC, 50-60 Hz
Redundant power supply is standard. |
| Power consumption | 170 to 3270 watts, depending on the configuration |
| Remote power capability | Supports up to 128 XTP twisted pair endpoints |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Fans, bottom to top and right to left (as viewed from front panel) |
| Thermal dissipation | 580 to 10236 BTU/hr, depending on the configuration |
| Mounting |
|
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | 35.0" H x 17.0" W x 17.5" D (20U high, full rack wide)
(89.0 cm H x 43.2 cm W x 44.5 cm D)
(Depth excludes connectors. Width excludes rack ears.) |
| Product weight with boards installed | 180 lbs (82 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
|
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
