通過單根 CATx 屏蔽電纜將 DisplayPort、HDMI 或 VGA 視頻、音頻、雙向 RS-232 和紅外及以太網信號傳輸至 100 m (330 ) 遠的距離 支持分辨率高達 4K 的計算機和視頻信號

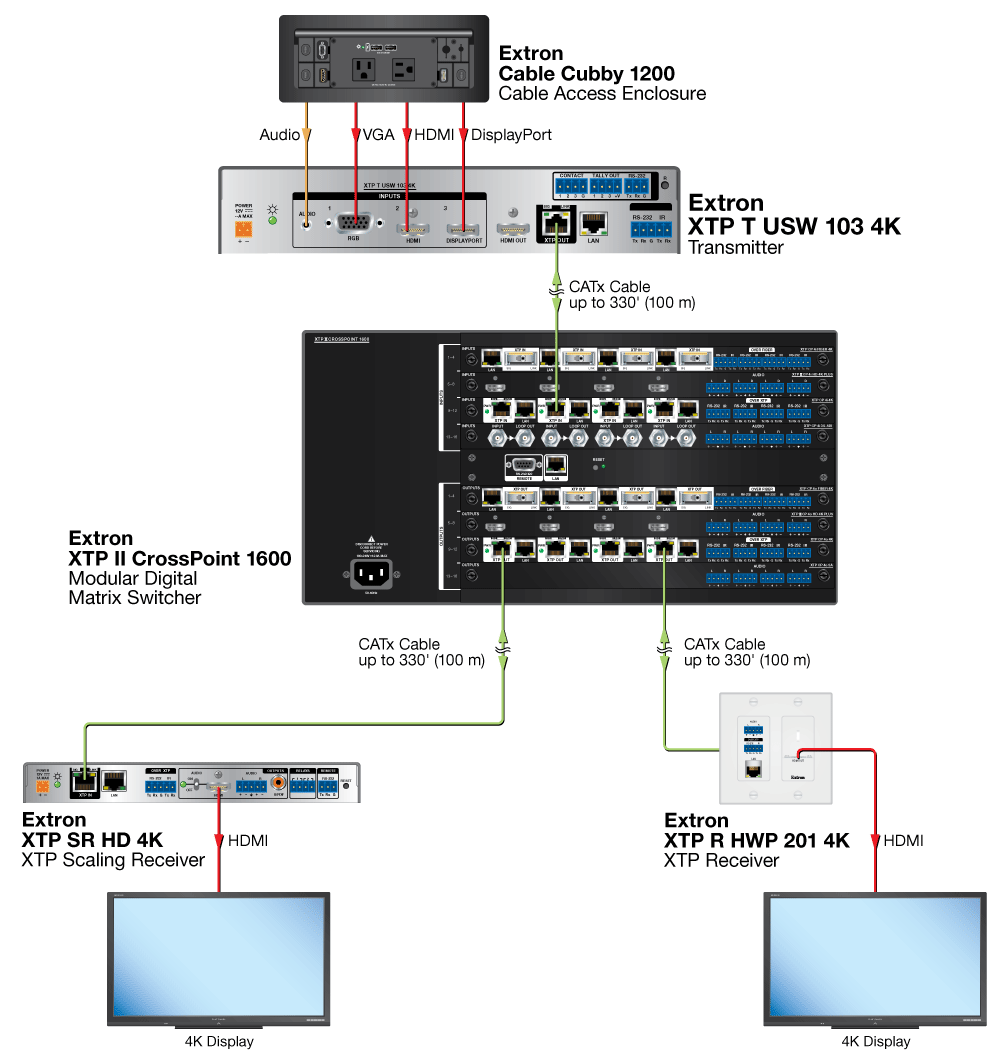

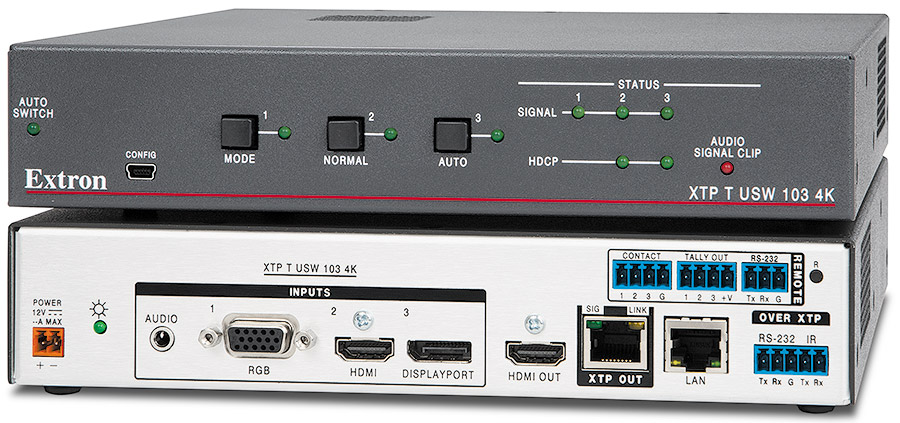

XTP T USW 103 4K 是一款 3 路輸入發送器，可通過單根 CATx 屏蔽電纜延長 DisplayPort、HDMI 或 VGA、音頻、雙向控制及以太網信號。這款符合 HDCP 2.2 標準的發送器支持分辨率高達 4K 的視頻信號，并提供一路本地 HDMI 輸出。它具有各路輸入之間可選擇優先級的自動切換功能，便于在無人值守的環境進行操作。它可將輸入的模擬信號數字化，單獨的模擬立體聲音頻還可加嵌到輸出信號。以太網擴展及雙向 RS-232 和紅外插入功能方便了局域網接入和遠程視音頻設備控制。通過屏蔽雙絞線電纜可將信號傳輸至 100 m (330') 遠的距離。XTP T USW 103 4K 是需要從遠端進行長距離傳輸的 XTP ystems? 的理想之選。
特性
通過單根 CATx 屏蔽電纜將 DisplayPort、HDMI 或 VGA 視頻、音頻、雙向 RS-232 和紅外及以太網信號傳輸至 100 m (330') 遠的距離
支持分辨率高達 4K 的計算機和視頻信號
HDMI 輸出可對選定的輸入提供本地顯示
符合 HDCP 2.2 標準
強烈建議使用 Extron XTP DTP 24 屏蔽雙絞線電纜，以達到更佳的性能表現
1 路 DisplayPort、1 路 HDMI 和 1 路 VGA 輸入
各路輸入之間的自動切換
用于視音頻設備控制的雙向 RS-232 和紅外插入
支持 HDMI 參數標準，包括高達 10.2 Gbps 的數據速率、高達 12 位的色深、3D 和高清無損的音頻格式
EDID 管理器 (EDID Minder?) 自動地管理已連接設備之間的 EDID 通信
密鑰管理器 (Key Mindersup>?) 持續地驗證 HDCP 標準，用于快速、可靠的切換
HDCP 可視確認 — 當處理 HDCP 加密的內容時，如果視頻輸出連接至一個不符合 HDCP 標準的顯示設備，圖像解析度轉換器即會輸出一個全屏的綠色信號，可以從視覺上立刻確認被保護內容無法顯示在此顯示設備上
以太網擴展
可選擇的模擬立體聲音頻輸入嵌入
音頻輸入增益及衰減
RS-232 控制
兼容 XTP 產品
隨附外置 Extron Everlast? 電源，產品編號 #70-1174-01
Extron Everlast 電源可享受 7 年部件及人工保修
| Video | |
|---|---|
| | |
| | Unity |
| | Up to 1920x1200* or 1080p (HDTV) * reduced blanking |
| | |
| | 10.2 Gbps (3.4 Gbps per color) |
| | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| | Up to 2560x1600 @ 60 Hz*, or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling * reduced blanking |
| | RGB and YCbCr digital video |
| | DisplayPort 1.1, DVI 1.0, HDMI 1.4, HDCP 1.4 and 2.2 |
| | |
| | 10.8 Gbps (2.7 Gbps per lane) |
| | 300 MHz |
| | Up to 2560x1600 @ 60 Hz*, or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, * reduced blanking |
| | RGB and YCbCr digital video |
| | DisplayPort 1.1, HDCP 1.3 |
| NOTE Only Single Stream Transport (SST) is supported. | |
| Video input | |
| | 1 analog RGBHV 1 single link HDMI (or DVI-D or DisplayPort) 1 DisplayPort |
| | 1 female 15-pin HD 1 female HDMI type A 1 female DisplayPort |
| | 0.7 Vp-p for RGB |
| | 0.3 V to 1.45 Vp-p |
| | 75 ohms |
| | 30 kHz to 100 kHz |
| | 24 Hz to 120 Hz |
| Video output — switched, local | |
| | 1 single link HDMI (or DVI-D) |
| | 1 female HDMI type A |
| Shielded twisted pair interconnection | |
| | 1 female RJ-45 per unit |
| | TIA/EIA T568B |
| | 330' (100 m) using shielded twisted pair or XTP DTP 24 cable |
| | Solid conductor, 24 AWG or better |
| | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. | |
| Audio | |
| | |
| | Adjustable, -18 dB to +24 dB |
| | Unbalanced output: 0 dB; balanced output +6 dB |
| | 20 Hz to 20 kHz, ±0.05 dB |
| | 0.1% @ 1 kHz at nominal level |
| | >90 dB, at maximum output, balanced (unweighted) |
| | ≤-80 dB @ 1 kHz, fully loaded |
| | >80 dB @ 1 kHz |
| | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| | 16, 20, 24 bit |
| Audio input | |
| | 1 analog stereo, unbalanced or 1 digital audio, de-embedded from HDMI 1 digital audio, de-embedded from DisplayPort |
| | 1 female 3.5 mm mini stereo jack 1 female HDMI type A (shared with video input) 1 female DisplayPort (shared with video input) |
| | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo |
| | >10k ohms, unbalanced, DC coupled |
| | -10 dBV (316 mVrms) unbalanced |
| | +7 dBv unbalanced |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu | |
| Audio output | |
| | 1 digital audio, embedded with HDMI output |
| | 1 female HDMI type A (shared with video output) |
| | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu | |
| Communications — switcher | |
| | 1 bidirectional RS-232: 1 rear panel 3.5 mm captive screw connector, 3 pole |
| | 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity |
| | 1 = Tx, 2 = Rx, 3 = Gnd |
| | (1) 3.5 mm captive screw connector, 4 pole |
| | 1 = input 1, 2 = input 2, 3 = input 3, 4 = GND |
| | 3 tally outputs on (1) 3.5 mm captive screw connector, 4 pole |
| | 1 = Input 1 tally ground, 2 = Input 2 tally ground, 3 = Input 3 tally ground, 4 = +5 V |
| | 1 front panel female mini USB B |
| | USB 2.0, low speed |
| | Extron control/configuration program for Windows? Extron Simple Instruction Set (SIS?) |
| Communications — external device (pass-through, unidirectional or bidirectional) | |
| | RS-232 (±5 V) via (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles) (connector is shared with the IR control port) |
| | Up to 115200 baud |
| | Data bits = 5 - 8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none |
| | 1 = Tx, 2 = Rx, 3 = Gnd |
| | (1) 3.5 mm, captive screw connector, 5 pole (uses 3 poles) (connector is shared with the RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz |
| | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| | 1 female RJ-45 connector |
| | 10/100Base-T, half/full duplex with autodetect |
| General | |
| | External Input: 100 to 240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts |
| | |
| | 16.5 watts, 12 VDC |
| | 18.2 watts, 12 VDC |
| NOTE The XTP T USW 103 4K requires a locally connected power supply. | |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| | Convection, vents on sides and top |
| | |
| | 55.3 BTU/hr |
| | 61.1 BTU/hr |
| Mounting | |
| | Yes, with optional 1U high rack shelf |
| | Yes, with optional under-desk mounting kit |
| | Metal |
| | 1.66" H x 8.68" W x 8.5" D (half rack wide) (4.2 cm H x 22.1 cm W x 21.5 cm D) (Depth excludes connectors.) |
| | 2.7 lbs (1.2 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| | |
| | CE, c-UL, UL |
| | CE, C-tick, FCC Class A, ICES, VCCI |
| | Complies with the appropriate requirements of RoHS, WEEE. |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
