通過單根 CATx 屏蔽電纜傳輸視頻、音頻、雙向 RS-232 和紅外，以及以太網信號至 100 m 遠的距離 支持分辨率高達 1920x1200 的計算機和視頻信號，包括 1080p 60 深色和 2K

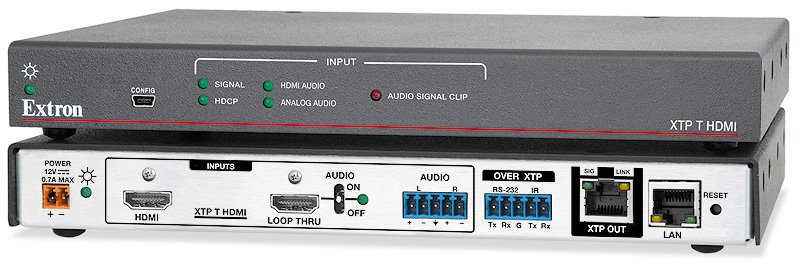

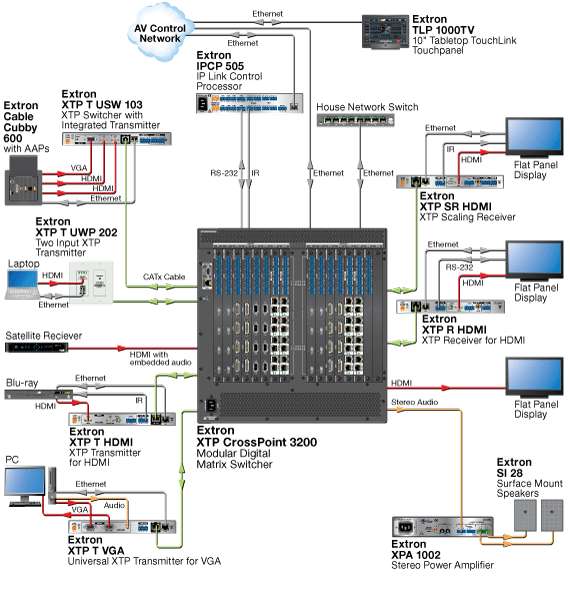

Extron XTP T HDMI 是一款 XTP? 發送器，可通過單根 CATx 屏蔽電纜將視頻、音頻、雙向 RS-232 和紅外及以太網信號發送至 100 m 遠的距離。它符合 HDCP 標準，并支持分辨率高達 1920x1200 的計算機和視頻信號，包括 1080p/60 深色和 2K。此發送器也可通過以太網擴展、雙向 RS-232 和紅外插入功能來實現局域網接入和遠端視音頻設備的控制。XTP T HDMI 發送器與 XTP Systems?配合使用，可用于遠程終端之間的信號分配和長距離傳輸。
特性
通過單根 CATx 屏蔽電纜傳輸視頻、音頻、雙向 RS-232 和紅外，以及以太網信號至 100 m 遠的距離
支持分辨率高達 1920x1200 的計算機和視頻信號，包括 1080p/60 深色和 2K
HDMI 環通，帶可選擇的音頻控制
符合 HDCP 標準
支持遠程供電
強烈建議使用 Extron XTP DTP 24 屏蔽雙絞線電纜，以達到更佳的性能表現
用于視音頻設備控制的雙向 RS-232 和紅外插入
EDID 管理器 (EDID Minder?) 自動地管理已連接設備之間的 EDID 通信
密鑰管理器 (Key Minder?) 持續地驗證 HDCP 標準，用于快速、可靠的切換
以太網擴展
可選擇的模擬立體聲音頻輸入加嵌
音頻輸入增益及衰減
兼容 XTP 產品
UL 2043 阻燃級
| Video | |
|---|---|
| | Unity |
| | Up to 1920x1200*, 2K, or 1080p (HDTV) * reduced blanking |
| | Single-link HDMI (or DVI-D*) |
| | RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered (supports all single-link DVI (if using an optional adapter) and HDMI standards from 640x480 @ 60 Hz to 1920x1200 @ 60 Hz) |
| | Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered. |
| | Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards |
| | Supports hot plug detection (HPD) of display as a pass-through signal. |
| | 6.75 Gbps (2.25 Gbps per color) |
| | 165 MHz |
| | RGB and YCbCr digital video |
| | DVI 1.0, HDMI, HDCP 1.1 |
| Video input and loop-through | |
| | 1 single link HDMI (or DVI-D*) input 1 single link HDMI (or DVI-D*) loop-through |
| | 2 female HDMI type A: 1 input, 1 loop-through |
| Interconnection between transmitter and receiver | |
| | 1 female RJ-45 per unit |
| | TIA/EIA T568B |
| | 330' (100 m) using shielded twisted pair or XTP DTP 24 cable |
| | Solid conductor, 24 AWG or better |
| | 400 MHz bandwidth, STP (Shielded Twisted Pair) |
| NOTE Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. | |
| Audio | |
| | Unbalanced output: 0 dB; balanced output: +6 dB |
| | 20 Hz to 20 kHz, ±0.5 dB |
| | <0.1%, 20 Hz - 20 kHz at nominal level |
| | >90 dB, at maximum balanced output (unweighted) |
| | ≤-80 dB @ 1 kHz, fully loaded |
| | >80 dB @ 1 kHz |
| | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| | 16, 20, 24 bit |
| Audio input | |
| | 1 analog stereo, balanced/unbalanced or 1 digital audio, de-embedded from HDMI |
| | (1) 3.5 mm captive screw connector, 5 pole 1 female HDMI type A (shared with video input) |
| | LPCM up to 7.1/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, DOlby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
| | 10k ohms, unbalanced, 20k ohms balanced |
| | +4 dBu, -10 dBV configurable |
| | +21 dBu balanced, +15 dBu unbalanced |
| | -18 dB to +24 dB, 1 dB steps, adjustable |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu | |
| Communications — transmitter | |
| | 1 front panel female mini USB B |
| | USB 2.0, low speed |
| | Extron control/configuration program for Windows? Extron Simple Instruction Set (SIS?) |
| Communications — external device (pass-through, unidirectional or bidirectional) | |
| | 1 set of proprietary signals on a female RJ-45 jack |
| | RS-232 (+5 V) via a (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles) (connector is shared with IR control port) |
| | Up to 115200 baud |
| | Data bits = 5 - 8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none |
| | 1 = Tx, 2 = Rx, 3 = GND |
| | 1 female RJ-45 connector |
| | 10/100Base-T, half/full duplex with autodetect |
| | (1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 40 kHz |
| | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| General | |
| | External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts |
| | |
| | 8.1 watts, 12 VDC |
| | 9.6 watts, 12 VDC |
| NOTE Each XTP transmitter can be powered either locally by an external power supply or remotely using an optional power injector. | |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| | Convection, vents |
| | |
| | 27.6 BTU/hr |
| | 32.6 BTU/hr |
| Mounting | |
| | Yes, with optional 1U high rack shelf |
| | Yes, with optional under-desk mounting kit |
| | Metal |
| | 1.0" H x 8.75" W x 6.0" D (half rack wide) (2.5 cm H x 22.2 cm W x 15.2 cm D) (Depth excludes connectors.) |
| | 1.6 lbs (0.7 kg) |
| | 4 lbs (2 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| | |
| | CE, c-UL, UL UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release, excluding the power supply. |
| | CE**, C-tick, FCC Class A**, ICES, KCC, VCCI |
| | Complies with the appropriate requirements of RoHS, WEEE. |
| NOTE **CE and FCC testing is conducted with STP (shielded twisted pair) cable. | |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
