通過單根光纖傳輸視頻、音頻、雙向 RS-232 和紅外控制及以太網信號 支持分辨率高達 4K 的計算機和視頻信號 帶可選音頻的 HDMI 環通 符合 HDCP 標準 用于視音頻控制的雙向 RS-232 和紅外插入

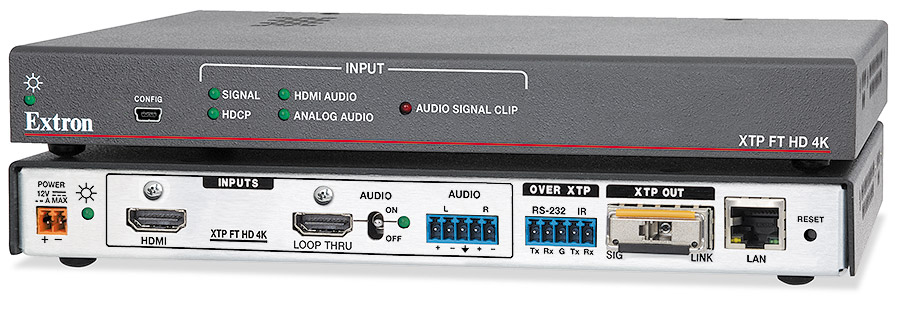

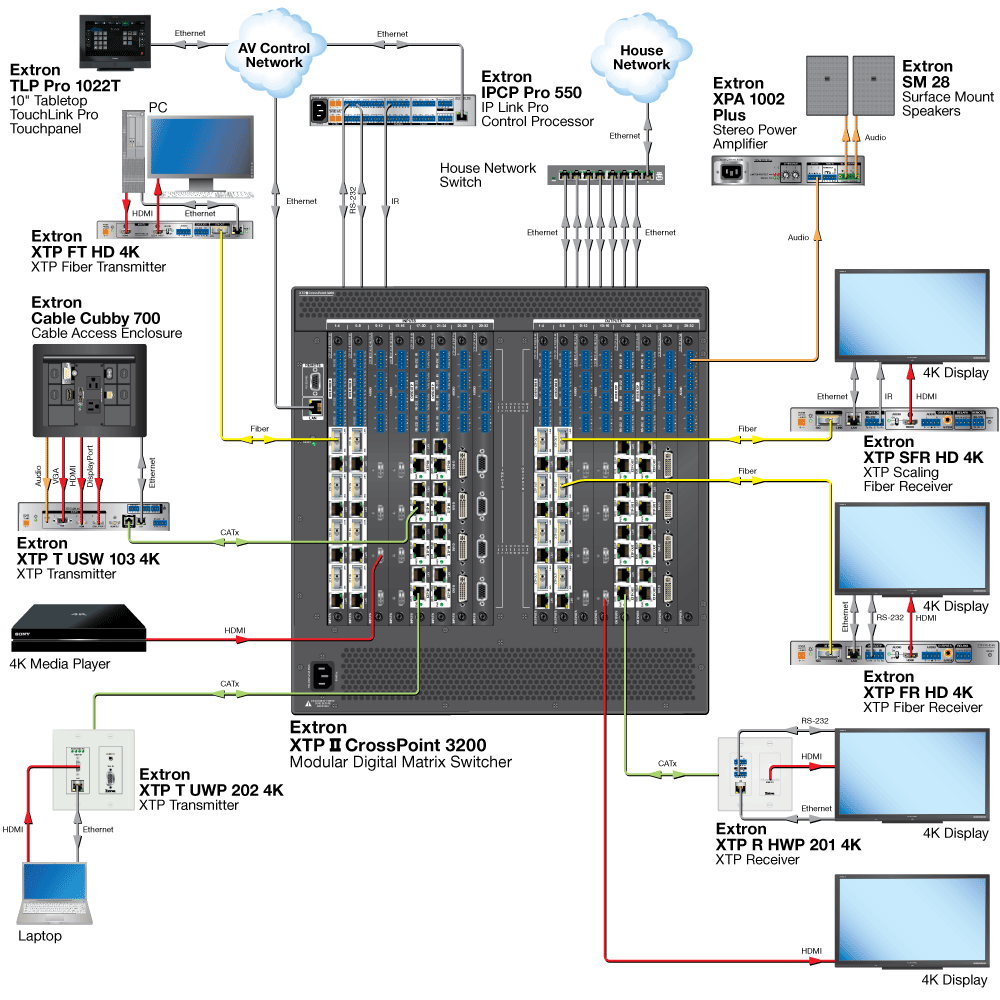

Extron XTP FT HD 4K 是一款 XTP? 發送器，可通過單根光纖延長視頻、音頻、雙向控制和以太網信號。這款符合 HDCP 標準的發送器可支持分辨率高達 4K、帶 4:4:4 色度取樣的視頻信號。為了簡化集成，它采用一路帶可選音頻控制的 HDMI 環通，能對模擬立體聲音頻信號進行加嵌。而且以太網擴展及雙向 RS 232 和紅外插入功能還提供了局域網接入和遠程視音頻設備控制。通過 OM4 多模光纖可將信號傳送至 700 m 遠的距離，通過單模光纖可傳輸至更遠 10 km 的距離。XTP FT HD 4K 非常適用于需要安全、長距離地傳輸像素對像素的視頻、音頻和控制信號的 XTP Systems?。
特性
通過單根光纖傳輸視頻、音頻、雙向 RS-232 和紅外控制及以太網信號
支持分辨率高達 4K 的計算機和視頻信號
帶可選音頻的 HDMI 環通
符合 HDCP 標準
HDCP 可視確認 — 當處理 HDCP 加密的內容時，如果視頻輸出連接至一個不符合 HDCP 標準的顯示設備，圖像解析度轉換器即會輸出一個全屏的綠色信號，可以從視覺上立刻確認被保護內容無法顯示在此顯示設備上
用于視音頻設備控制的雙向 RS-232 和紅外插入
以太網擴展
EDID 管理器 (EDID Minder?) 自動地管理已連接設備之間的 EDID 通信
密鑰管理器 (Key Minder?) 持續地驗證 HDCP 標準，用于快速、可靠的切換
可選的模擬立體聲音頻輸入加嵌
音頻輸入增益及衰減調整
兼容 XTP 產品
隨附外置 Extron Everlast? 電源，產品編號 #70-1174-01 — 該通用型電源具有經驗證的高可靠性和低功耗，能夠降低運行成本
Extron Everlast 電源可享受 7 年部件及人工保修
| Video | |
|---|---|
| | Unity |
| | Up to 2560x1600 @ 60 Hz* or 4K (4096x2160) @ 24 Hz, UHD (3840x2160) @ 30 Hz, UHD @ 60 Hz with 4:2:0 chroma subsampling * reduced blanking |
| | Single-link HDMI (or DVI-D or DisplayPort) |
| | 8, 10, or 12 bits — subject to the maximum data rate limit |
| | 8.91 Gbps (2.97 Gbps per color) |
| | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| | RGB and YCbCr digital video |
| | DisplayPort 1.1, DVI 1.0, HDMI 1.4a, HDCP 1.4 |
| Video input and loop-through | |
| | 1 single link HDMI (or DVI-D or DisplayPort) input 1 single link HDMI (or DVI-D) loop-through |
| | 2 female HDMI type A: 1 input, 1 loop-through |
| Optical fiber interconnection between transmitter and receiver | |
| | 1 set of proprietary signals |
| | 1 LC fiber connector |
| | |
| NOTE Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. | |
| | 10 km (6.21 miles) with singlemode cable |
| | 400 m (1312') with 50 μm OM3 2000 MHz bandwidth laser optimzed multimode cable 700 m (2297') with 50 μm OM4 4700 MHz bandwidth laser optimzed multimode cable |
| NOTE Multimode units are compatible with OM1 and OM2 multimode cables, but at reduced operating distances. | |
| | |
| | 1490 nm, 1550 nm, 1310 nm |
| | 850 nm, 980 nm, 780 nm |
| | 8.5 Gbps |
| | |
| | -6 dBm, typical |
| | -5 dBm, typical |
| | |
| | -15 dBm, typical |
| | -13 dBm, typical |
| | |
| | 9 dB, maximum |
| | 8 dB, maximum |
| Audio | |
| | Unbalanced output: 0 dB; balanced output: +6 dB |
| | 20 Hz to 20 kHz, ±0.5 dB |
| | <0.1%, 20 Hz - 20 kHz at nominal level |
| | >90 dB, at maximum balanced output (unweighted) |
| | ≤-80 dB @ 1 kHz, fully loaded |
| | >80 dB @ 1 kHz |
| | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| | 16, 20, 24 bit |
| Audio input | |
| | 1 analog stereo, balanced/unbalanced or 1 digital audio, de-embedded from HDMI |
| | (1) 3.5 mm captive screw connector, 5 pole 1 female HDMI type A (shared with video input) |
| | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo |
| | 10k ohms, unbalanced, 20k ohms balanced |
| | +4 dBu (1.23 mVrms) balanced, -10 dBV (316 mVrms) unbalanced |
| | +21 dBu balanced, +15 dBu unbalanced |
| | -18 dB to +24 dB, 1 dB steps, adjustable |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu | |
| Communications — transmitter | |
| | 1 front panel female mini USB B |
| | USB 2.0, low speed |
| | Extron control/configuration program for Windows? Extron Simple Instruction Set (SIS?) |
| Communications — external device (pass-through, unidirectional or bidirectional) | |
| | RS-232 (+5 V) via a (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles) (connector is shared with the IR control port) |
| | Up to 115200 baud |
| | Data bits = 5 - 8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none |
| | 1 = Tx, 2 = Rx, 3 = GND |
| | (1) 3.5 mm, captive screw connector, 5 pole (uses 3 poles) (connector is shared with the RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz |
| | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| | 1 female RJ-45 connector |
| | 10/100Base-T, full duplex with autodetect |
| General | |
| | External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts |
| | |
| | 8.1 watts |
| | 10 watts |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| | Convection, vents |
| | |
| | 26.2 BTU/hr |
| | 32.8 BTU/hr |
| Mounting | |
| | Yes, with optional 1U high rack shelf |
| | Yes, with optional under-desk mounting kit |
| | Metal |
| | 1.0" H x 8.75" W x 6.0" D (half rack wide) (2.5 cm H x 22.2 cm W x 15.2 cm D) (Depth excludes connectors.) |
| | 1.6 lbs (0.7 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| | CE, c-UL, UL, IEC 60825-1, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS and WEEE. |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
