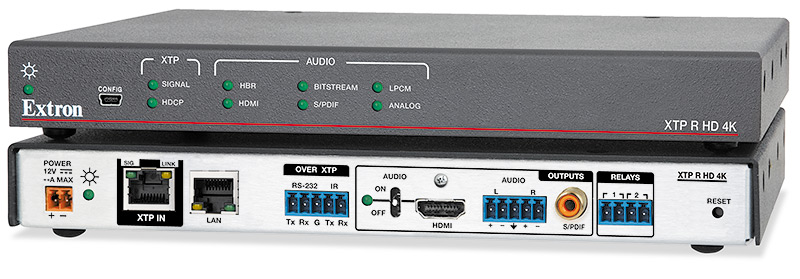

| Video |
|---|
| Gain | Unity |
| Resolution range | Up to 2560x1600 @ 60 Hz* or
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
* reduced blanking |
| Signal type | Single-link HDMI (or DVI-D or DisplayPort) |
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| Formats | RGB and YCbCr digital video |
| Standards | DisplayPort 1.1, DVI 1.0, HDMI 1.4; HDCP 2.2 |
|
| Interconnection between transmitter and receiver |
|---|
| Connectors | 1 female RJ-45 per unit |
| Termination standards | TIA/EIA T568B |
| Signal transmission distance | 330' (100 m) using shielded twisted pair or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (Shielded Twisted Pair) |
| NOTE Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| Video output |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D) |
| Connectors | 1 female HDMI type A |
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output: +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.05 dB |
| THD + Noise | <0.1% @ 20 Hz - 20 kHz at nominal level |
| S/N | >90 dB, at maximum balanced output (unweighted) |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| Sampling rates | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Bit depths | 16, 20, 24 bit |
|
| Audio output |
|---|
| Number/signal type | 1 analog stereo (2-channel), balanced/unbalanced
1 digital audio, embedded with HDMI output
1 digital audio via S/PDIF output connector |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole
1 female HDMI type A (shared with video output)
1 female RCA jack (tip, ring) |
| Supported formats |
|
| HDMI | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby? TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
| S/PDIF | LPCM up to 7.1/24-bit/192 kHz, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
| Analog | Analog stereo audio |
| Impedance |
|
| Analog | 50 ohms unbalanced, 100 ohms balanced |
| Digital | 75 ohms (for S/PDIF output) |
| Maximum level (Hi-Z) | >+12 dBV balanced; +6 dBV unbalanced |
| Gain error | ±0.5 dB channel to channel |
| Volume control range | -100 dB to 0 dB (control 0 to 100 in 1 dB steps) |
| NOTE Attenuation = volume number minus 64. The default is 0 dB = volume number 64. |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
| Communications — receiver |
|---|
| USB control ports | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Program control | Extron control/configuration program for Windows?
Extron Simple Instruction Set (SIS?) |
|
| Communications — external device (pass-through, unidirectional or bidirectional) |
|---|
| Serial control port input/output | 1 set of proprietary signals on a female RJ-45 jack |
| Serial control port output/input | RS-232 (+5) via (1) 3.5 mm, 5-pole captive screw connector (uses 3 poles) (connector is shared with IR control port) |
| Baud rates | Up to 115200 baud |
| Protocol | Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, none |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| IR control port | (1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
| Ethernet pass-through port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Relay number/type | 2 normally open relays |
| Relay control connectors | (1) 3.5 mm captive screw connectors, 4 pole |
| Relay control contact rating | 24 V, 1 A |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption |
|
| Device | 9.1 watts, 12 VDC |
| Device and power supply | 11.3 watts, 12 VDC |
| NOTE The XTP receiver can be powered either locally by an external power supply or remotely using an optional power injector or XTP CrossPoint matrix switcher. |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents on sides and top |
| Thermal dissipation |
|
| Device | 30.0 BTU/hr |
| Device and power supply | 37.6 BTU/hr |
| Mounting |
| Rack mount | Yes, with optional 1U high rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 8.68" W x 6.0" D (half rack wide)
(2.5 cm H x 22.1 cm W x 15.2 cm D)
(Depth excludes connectors.) |
| Product weight | 1.6 lbs (0.7 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
|
| Safety | CE, c-UL, UL |
| EMI/EMC | CE**, C-tick, FCC Class A**, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
| NOTE **CE and FCC testing is conducted with STP (shielded twisted pair) cable. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. |
| NOTE Specifications are subject to change without notice. |
