支持 TouchLink? Pro 觸摸屏和 eBUS? 按鍵面板 支持行業安全標準的通信協議 支持 LinkLicense? 1 個支持軟件握手的雙向 RS-232 串行端口 1 個支持硬件和軟件握手的雙向 RS-232 RS-422 RS-485 串行端口

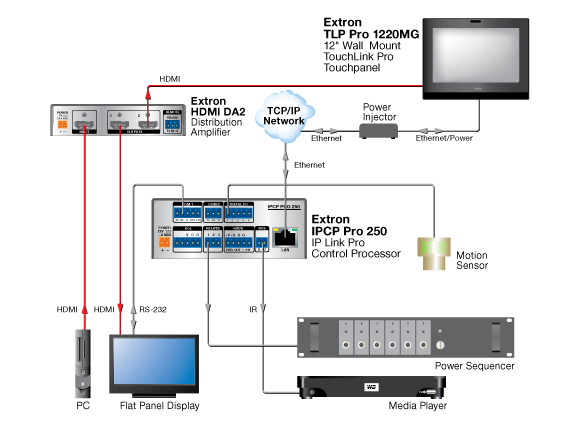

Extron IPCP Pro 250 是一款通用的高性能控制處理器，設計在中小型應用環境中進行集中式視音頻控制。作為 IP Link? Pro 系列的組成部分，IPCP Pro 250 采用安全標準和千兆以太網，確保了在標準網絡架構上與多個 TouchLink? Pro 觸摸屏兼容。它還支持 Extron LinkLicense?，進一步增強了 Extron Pro 系列控制系統的功能。IPCP Pro 250 是控制一個視音頻系統內的多個設備和多種控制信號類型的理想之選。
特性
支持 TouchLink? Pro 觸摸屏和 eBUS? 按鍵面板
支持行業安全標準的通信協議
支持 LinkLicense?
1 個支持軟件握手的雙向 RS-232 串行端口
1 個支持硬件和軟件握手的雙向 RS-232/RS-422/RS-485 串行端口
1 個紅外/串行端口，用于外部設備的單向控制
4 個數字輸入/輸出端口
2 個繼電器，用于控制房間功能
eBUS 端口用于連接 eBUS 按鍵面板和附件
支持 10/100/1000Base-T
支持常見的 BMS（建筑管理系統）協議，如 BACnet、KNX 和 DALI
以太網監視和控制
隨附外置 Extron Everlast? 電源，產品編號 #70-1174-01 — 該通用型電源具有經驗證的高可靠性和低功耗，能夠降低運行成本
Extron Everlast 電源可享受 7 年部件及人工保修
| IPCP Pro 250 | |
| Memory | |
|---|---|
| | 512 MB |
| | 4.5 GB |
| Software and control options | |
| | Extron Global Configurator? Plus and Professional for Windows?, Global Scripter? |
| | GlobalViewer?, Extron Control for iPad and Web, TouchLink? Pro touchpanels, or eBUS? button panels |
| Ethernet control | |
| | 1 |
| | 1 female RJ-45 connector |
| | 10/100/1000Base-T, half/full duplex with autodetect |
| | DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| | Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1 |
| Serial control | |
| | 1 bidirectional RS-232, RS-422, RS-485 (port 1) 1 bidirectional RS-232 (port 2) |
| | (1) 3.5 mm captive screw connector, 5 pole (1) 3.5 mm captive screw connectors, 3 pole |
| | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
| NOTE The 5-pole ports support both hardware and software flow control.The 3-pole ports support software flow control.The default for both types of ports is no flow control. | |
| | |
| Serial, 5-pole captive screw | |
| | Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS |
| | Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ |
| | Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ |
| | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
| Digital I/O control | |
| | 4 digital input/output (configurable) |
| | (1) 3.5 mm captive screw connector, 5 pole |
| | |
| | 0 to 24 VDC, clamped at +30 VDC |
| | >10k ohms |
| | 1k ohms to +5 VDC |
| | >2.8 VDC |
| | <2.0 VDC |
| | 250 mA sink from 24 VDC max. |
| | 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd |
| IR/serial control | |
| | 1 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
| | (1) 3.5 mm captive screw connector, 2-pole |
| | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
| | For each port, pin 1 = signal, 2 = Gnd |
| | 30 kHz to 300 kHz |
| | 30 kHz to 300 kHz |
| | 2" (5.1 cm) to 12" (30.5 cm) from the front panel |
| Relay control | |
| | 2 normally open relays |
| | (1) 3.5 mm captive screw connector, 3 pole |
| | 24 VDC, 1 A |
| Volume control | |
| | 1 volume control (compatible with select Extron amplifiers) |
| | (1) 3.5 mm captive screw connector, 5 pole |
| | Pin 3 = ≤10 VDC reference voltage input, pin 4 = 0 to +10 VDC control voltage output, pin 5 = Gnd |
| | 0 to +10 VDC (±0.2 volts), adjustable |
| eBUS control | |
| | (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles) |
| | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| | Extron STP20-2/1000 or STP20-2P/1000 cable |
| | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details. |
| | 6 watts |
| General | |
| | External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts |
| | 12 VDC, 1 A, 12 watts, max. |
| | |
| | 8.8 watts, 12 VDC |
| | 11.0 watts, 100-240 VAC, 50-60 Hz |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| | Convection, no vents |
| | |
| | 9.5 BTU/ hr |
| | 16.8 BTU/hr |
| | |
| | Yes, with optional 1U rack shelf |
| | Yes, with optional bracket kit |
| | Metal |
| | 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (4.3 cm H x 10.9 cm W x 15.2 cm D) (Depth excludes connectors.) |
| | 0.7 lbs (0.3 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| | CE, c-UL, UL UL Listed for use in plenum air handling spaces |
| | CE, C-Tick, FCC Class A, ICES, VCCI |
| | Complies with the appropriate requirements of RoHS, WEEE |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
