具有 1366x768 的分辨率和 1600 萬色彩的 15 " 電容式觸摸屏 更快的處理速度和更大的內存 支持全動態視頻預覽和監視的 XTP 和 HDMI 輸入信號 兼容所有的 IP Link Pro 控制處理器

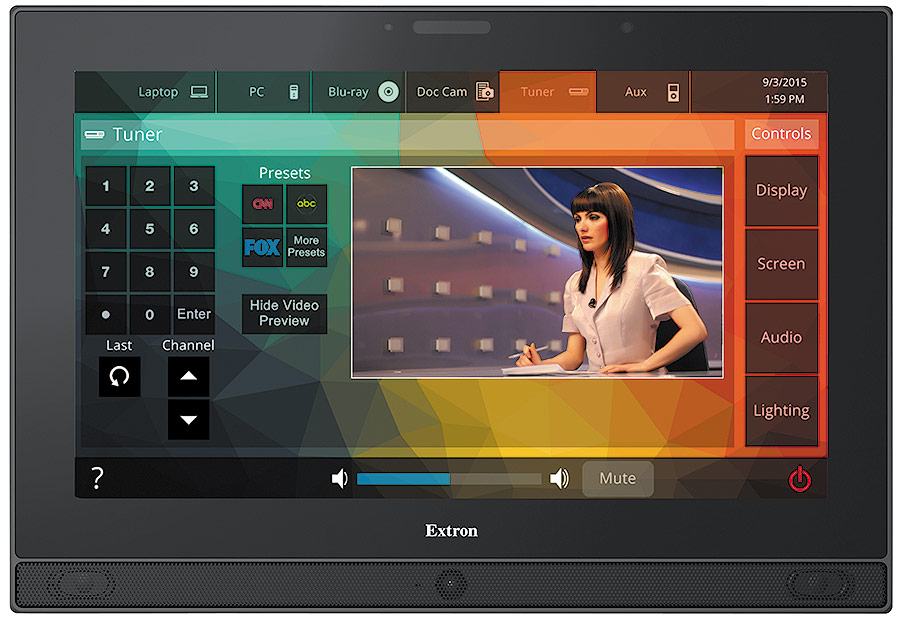

Extron TLP Pro 1520MG 是一款采用了電容式無邊框玻璃觸摸屏的 15" 墻面安裝型觸控面板。這款可定制的觸摸屏具有更快的處理速度和更大的內存，其彩色 1366x768 電容式觸摸屏能夠提供鮮活的外觀和更加靈敏的控制。TLP Pro 1520MG 具有的視頻預覽輸入可支持來自 HDMI 信號源和 Extron XTP 設備、符合 HDCP 標準的高分辨率視頻。便捷的 PoE+ 使觸摸屏通過單根以太網電纜獲取電源及進行通信。TLP Pro 1520MG 時尚的設計和的功能使其非常適用于需要一款完全可定制、帶有大尺寸控制面和多源視頻預覽功能的墻面安裝型觸摸屏的控制應用環境。
特性
具有 1366x768 的分辨率和 1600 萬色彩的 15" 電容式觸摸屏
更快的處理速度和更大的內存
支持全動態視頻預覽和監視的 XTP 和 HDMI 輸入信號
兼容所有的 IP Link Pro 控制處理器
PoE+ 可通過單根以太網電纜提供電源及進行通信，無需本地電源 - 電源合路器單獨出售
內置揚聲器支持立體聲音頻
光感應器可根據環境照明的變化自動調整屏幕的亮度
可配置的紅色和綠色狀態指示燈用于指示房間的狀態：可用或正在使用
如果觸摸屏未與控制處理器通信，系統連接狀態指示燈就會提供視覺反饋
兩個高速 USB 2.0 接口
3.5 mm 耳機插孔為觸摸屏提供了本地音頻輸出
自動時鐘同步使觸摸屏能夠顯示準確的時間和日期
節能特性：
- 可調整的休眠計時器能讓觸摸屏進入休眠模式
- 運動探測器可將觸摸屏激活
可固定安裝在墻面、講臺或其它平面上
| TLP Pro 1520MG | |
| Display | |
|---|---|
| | Active matrix TFT color display |
| | 15.6" (39.5 cm), measured diagonally |
| | 1366x768 |
| | 100 dpi |
| | Widescreen |
| | 24-bit, 16.7M colors |
| | 8 bit alpha channel |
| | 270 nits (cd/m2) |
| | 475:1 |
| | LED |
| | ±85° horizontal, ±80° vertical |
| | Capacitive |
| Memory | |
| | 512 MB |
| | 512 MB |
| XTP – Interconnection between transmitter and receiver | |
| | TIA/EIA T568A or T568B |
| | 330' (100m) using CAT 5e/6/7 UTP or STP cable (24 AWG or better) |
| | Solid conductor, 24 AWG or better |
| | 400 MHz bandwidth, STP (Shielded Twisted Pair) |
| Video input | |
| | Up to 1920x1200*, 2K, or 1080p (HDTV) * reduced blanking |
| | 1 HDMI (HDCP compliant) 1 XTP |
| | 1 female HDMI type A 1 female RJ-45 (shared with Ethernet interface) |
| | 18.75 kHz to 75 kHz |
| | 24 Hz to 75 Hz |
| | DVI 1.0, HDMI, HDCP |
| | 48 kHz |
| Video processing | |
| | 8, 10, or 12 bits per channel; 165 MHz pixel clock |
| | 1 billion (10 bit processing) |
| Control — Touchpanel | |
| | On/off |
| | On/off |
| Control – Ethernet interface | |
| | 1 female RJ-45 connector (shared with XTP video input) |
| | 100Base-T, half/full duplex with autodetect |
| | DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP |
| | Link speed and duplex level: autodetected IP address = 192.168.254.251 Subnet mask = 255.255.0.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 |
| | |
| | Global Configurator Plus and Professional, GUI Designer |
| | Global Scripter |
| | Extron Control, iGVE |
| | GlobalViewer Enterprise, iGVE |
| | Toolbelt, Embedded Web page |
| Control — Host ports | |
| | 2 high-speed USB 2.0 devices |
| | 2 USB type A connectors |
| | USB 2.0, USB 1.1, USB 1.0 compatible |
| | Low speed (1.5 Mbps), full speed (12 Mbps) |
| Audio output – Speaker | |
| | 2 speakers (stereo), 86 dB SPL, 0.1 watt, 0.1 m, half space |
| | 750 Hz to 20 kHz, ±5 dB |
| | |
| | WAV (Microsoft RIFF) |
| | LPCM (uncompressed) |
| | Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit |
| | 2 kHz to 192 kHz |
| | Mono or stereo |
| Audio output – Line level | |
| | 1 stereo, unbalanced |
| | 1 female 3.5 mm stereo mini jack; tip (L), ring (R), sleeve (GND) |
| | 50 ohms unbalanced |
| | ±0.1 dB channel to channel |
| | -10 dBV (316 mVrms) |
| | >+8.2 dBV unbalanced at 1% THD+N |
| | >7.1 dBm unbalanced at 1% THD+N |
| General | |
| | Not included |
| | 12 VDC or Power over Ethernet Plus (PoE+ IEEE 802.3at) |
| Power consumption — Power injector (PI 140) | |
| | 26.7 watts |
| | 30.9 watts |
| Power consumption — PoE + PSE | |
| | 23.5 watts |
| Power consumption — Power supply (PS 1230) | |
| | 23.2 watts |
| | 29.6 watts |
| | Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| | Convection, vents on top, bottom, and rear |
| Thermal dissipation — Power injector (PI 140) | |
| | 86.0 BTU/hr |
| | 101.0 BTU/hr |
| Thermal dissipation — PoE + PSE | |
| | 75.0 BTU/hr |
| Thermal dissipation — Power supply (PS 1230) | |
| | 73.8 BTU/hr |
| | 95.9 BTU/hr |
| | |
| | With optional kit |
| | With included hardware or optional accessories |
| | Plastic |
 | |
| | |
| | 11.0" H x 16.1" W x 1.1" D (280 mm H x 408 mm W x 29 mm D) |
| | 5.6" H x 8.8" W x 1.6" D (142 mm H x 224 mm W x 41 mm D) |
| | 7.0 lbs (3.18 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| | |
| | CE, c-UL, UL |
| | CE, C-tick,FCC Class A, ICES, VCCI |
| | Complies with the appropriate requirements of RoHS and WEEE. |
| | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
