High Power Mid-High Frequency

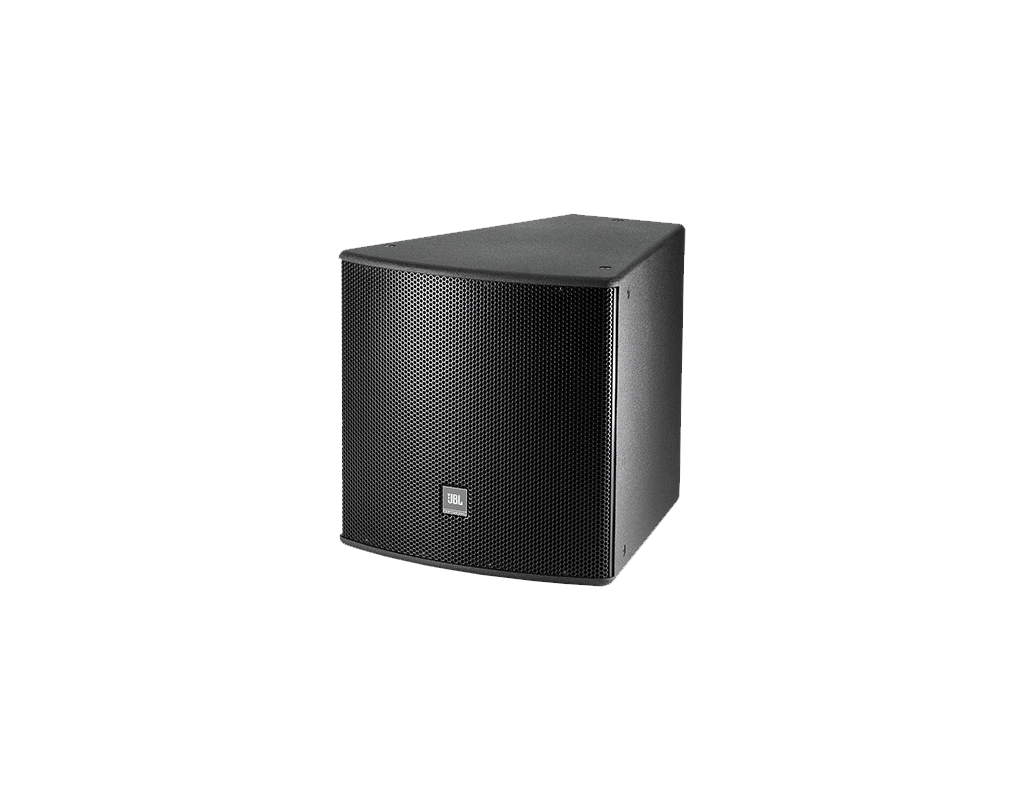

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

FEATURES
? CMCD? Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
? 2432H High-Frequency Compression Driver
? PT? Progressive Transition Waveguide for excellent pattern control with low distortion.
? Bi-Amp/Passive Switchable.
? Optional planar array frame kits (see AE Series Array Guide).

APPLICATIONS
? Performing arts facilities
? Theatrical sound design
? Auditoriums
? Houses of worship
? Live clubs
? Dance-clubs/discotheques
? Sports facilities
? Themed entertainment venues
? Voice-only PA (without LF or subwoofer reinforcement)
? Delay fill applications (without LF or subwoofer reinforcement)

Frequency Range (-10 dB)	260 Hz – 20 kHz
Frequency Response (±3 dB)	330 Hz – 18 kHz
Coverage Pattern	/64: 60° x 40°, rotatable waveguide
Coverage Pattern	/95: 90° x 50°, rotatable waveguide
Crossover Modes	Bi-amp/Passive switchable
Crossover Frequency	2.3 kHz
Transducer Power Rating (AES)	MF: 350 W (1400 W peak), 2 hrs
Transducer Power Rating (AES)	HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC)	MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL	Bi-amp mode:
	MF: 133 dB-SPL cont avg (139 dB peak)
	HF: 135 dB-SPL cont avg (141 dB peak)
	Passive mode:
	MF/HF: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity (1W @ 1m):	Passive mode: 108 dB SPL
Nominal Impedance	8 ohms
Midrange Driver	JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive? dual voice-coil internal driver
Sensitivity (1W @ 1m)	108 dB SPL
(Midrange)	108 dB SPL
High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)	115 dB SPL
(High Frequency)	115 dB SPL
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish	Black DuraFlex? finish.
Finish	White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon? and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical cabinet orientation)	548 x 561 x 657 mm
Dimensions (H x W x D in vertical cabinet orientation)	(21.6 x 22.1 x 25.9 in)
Net Weight	27.2 kg (60 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
