技術規格AC2215 00isacompact2-wayfullrangeloudspeakersystemcomprisedofone380mm(15in)low frequencydriverandone38mm(1 5in)exit 44mm(

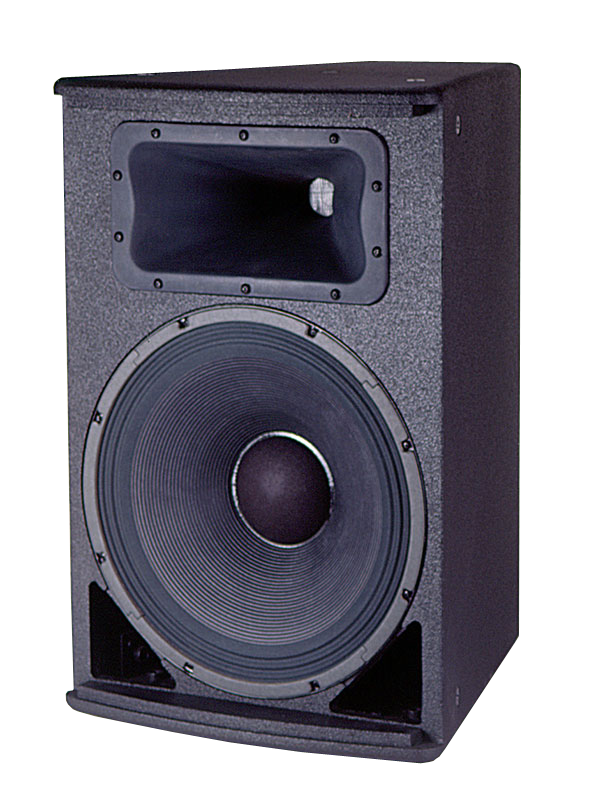

| AC2215/00 is a compact 2-way fullrange loudspeaker system comprised of one 380 mm (15 in) low frequency driver and one 38 mm (1.5 in) exit/ 44 mm (1.75 in) voice-coil compression driver. The PT Progressive Transition waveguide provides wide 100° by 100° coverage. High-slope passive crossovers minimize band overlap. |
| Features : | |
| ? | 100° x 100° Coverage. |
| ? | PT Progressive Transition Waveguide for good pattern control with low distortion |
| ? | Bi-Amp/Passive Switchable. |
| ? | Optional U-Bracket for easy installation |
| Specifications : | |
| Frequency Range | 42 Hz - 19 kHz (-10 dB) |
| Frequency Response | 50 Hz - 17 kHz ( ± 3 dB) |
| Coverage Pattern | 100°x 100° |
| Directivity Factor (Q) | 7.1 |
| Directivity Index (DI) | 8.5 dB |
| Crossover Modes | Bi-amp/Passive switchable |
| Transducer Power Rating (AES) | LF: 275 W (1100 W peak), 2 hrs 250 W (1000 W peak), 100 hrs HF: 50 W (200 W peak), 2 hrs |
| Maximum SPL | Bi-amp mode: LF: 121 dB-SPL cont avg (127 dB peak) HF: 126 dB-SPL cont avg (132 dB peak) Passive mode: 121 dB-SPL cont avg (127 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode: 97 dB SPL |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 637 x 422 x 504 mm (25.1 x 16.6 x 19.9 in) |
| Net Weight | 25.0 kg (55 lb) |
