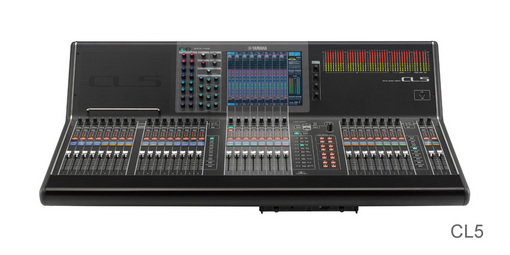

CL5
三區推子布局、高效方便的控制能力,使CL5成為多種規模現場擴聲系統的理想選擇。
·輸入、輸出通道:72 個單聲道,8 個立體聲;24個混音母線,8個矩陣母線。
·推子配置:16 推子的左側功能區,8 推子的Centralogic 功能區,8 推子的右側區,2 推子主控功能區。
·鋁合金支架可支撐iPad。
·內建電平表橋。

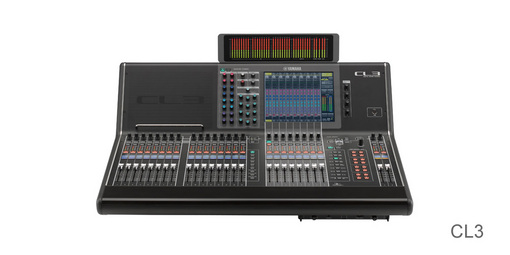

CL3
緊湊的體積結合通道能力,滿足多種現場和固定安裝應用。
·輸入、輸出通道:64 個單聲道,8 個立體聲;24個混音母線,8個矩陣母線。
·推子配置:16 推子的左側功能區,8 推子的Centralogic 功能區,2 推子主控功能區。
·鋁合金支架可支撐iPad。
·電平表橋選購件。

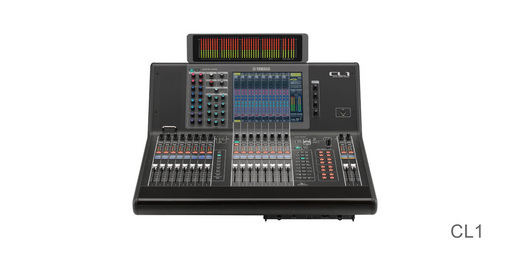

CL1
兩組8 推子功能區大大節省了空間,調音臺可以單獨使用,也可以~聯連接到另外的CL控制臺,實現輸入擴展。
·輸入、輸出通道:48 個單聲道,8 個立體聲;24個混音母線,8個矩陣母線。
·推子配置:8 推子的左側功能區,8 推子的Centralogic功能區,2 推子主控功能區。
·電平表橋選購件。
CL5, CL3, CL1
General specifications | CL5 | CL3 | CL1 | |
Sampling frequency rate | Internal | 44.1kHz / 48kHz | 44.1kHz / 48kHz | 44.1kHz / 48kHz |
External | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | |
Signal delay | Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz | Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz | Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz | |
Total harmonic distortion | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min. | |
Frequency response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT | |
Dynamic range | 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min. | 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min. | 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min. | |
Crosstalk | -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min. | -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min. | -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min. | |
Power requirements | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | |
Power consumption | 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W | 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W | 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W | |
Dimensions | W | 1053mm (41 1/2in) | 839mm (33 1/8in) | 648mm (25 5/8in) |
H | 299mm (11 3/4in) | 299mm (11 3/4in) | 299mm (11 3/4in) | |
D | 667mm (26 1/4in) | 667mm (26 1/4in) | 667mm (26 1/4in) | |
Net weight | 36kg (79.4lb) | 29kg (63.9lb) | 24kg (52.9lb) | |
Others | Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C | Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C | Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C | |
*1 Crosstalk is measured with a 30dB/octave filter @22kHz
*2 Excluded MBCL optional meter bridge.
*3 Total Harmonic Distortion is measured with 18dB/octave filter @80kHz
*4 Hum & Noise are measured with A-Weight filter.
